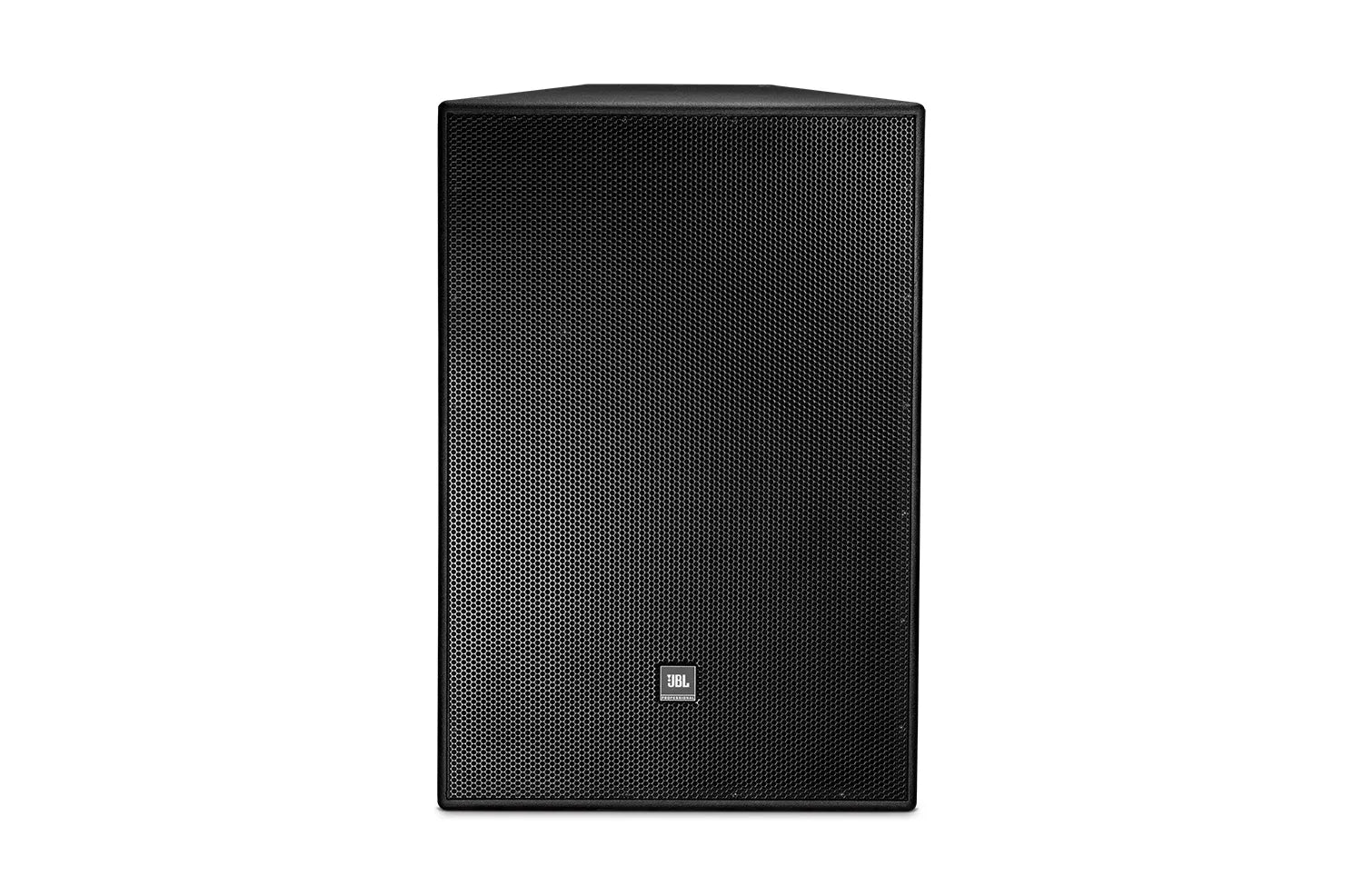

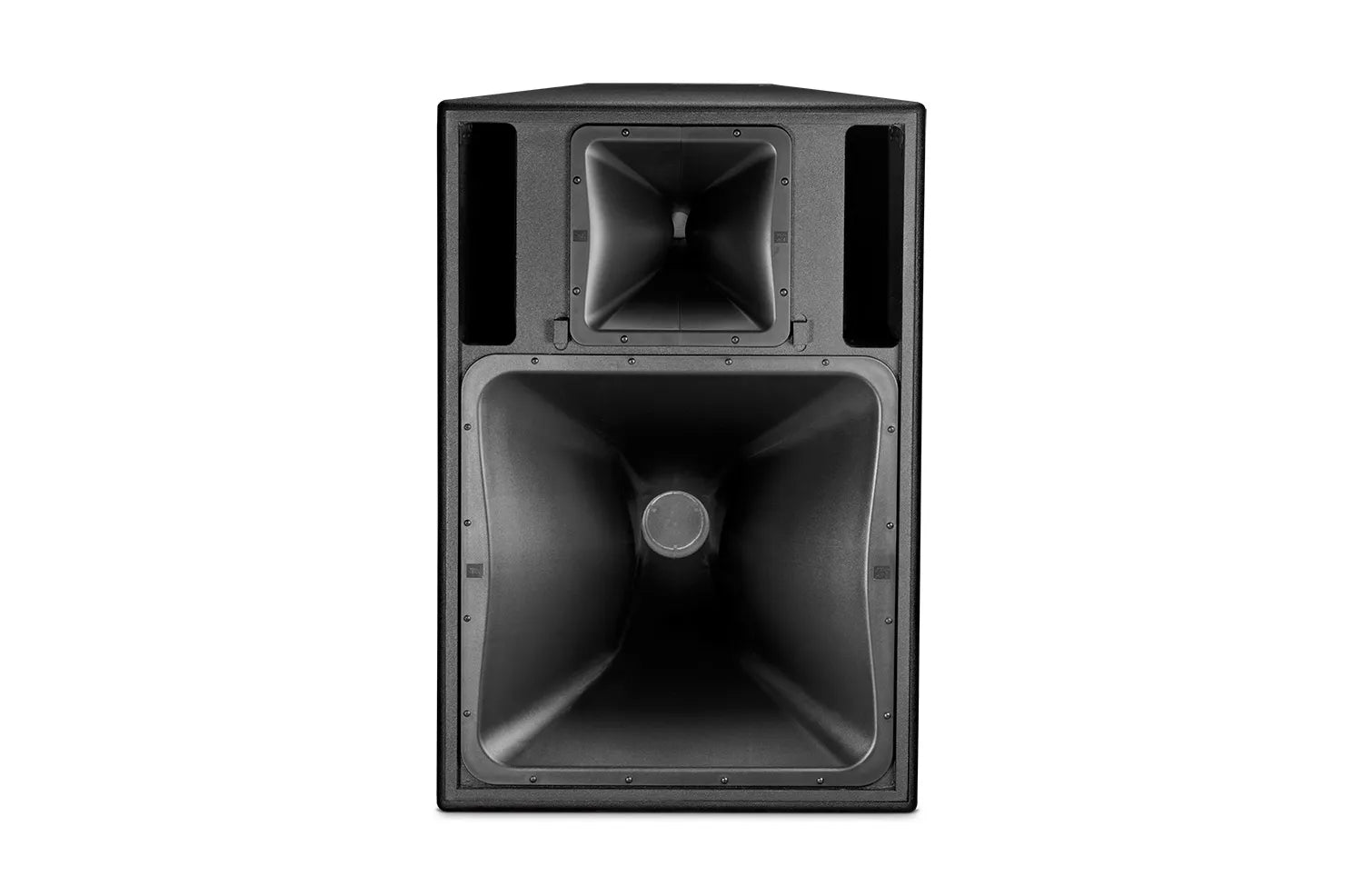

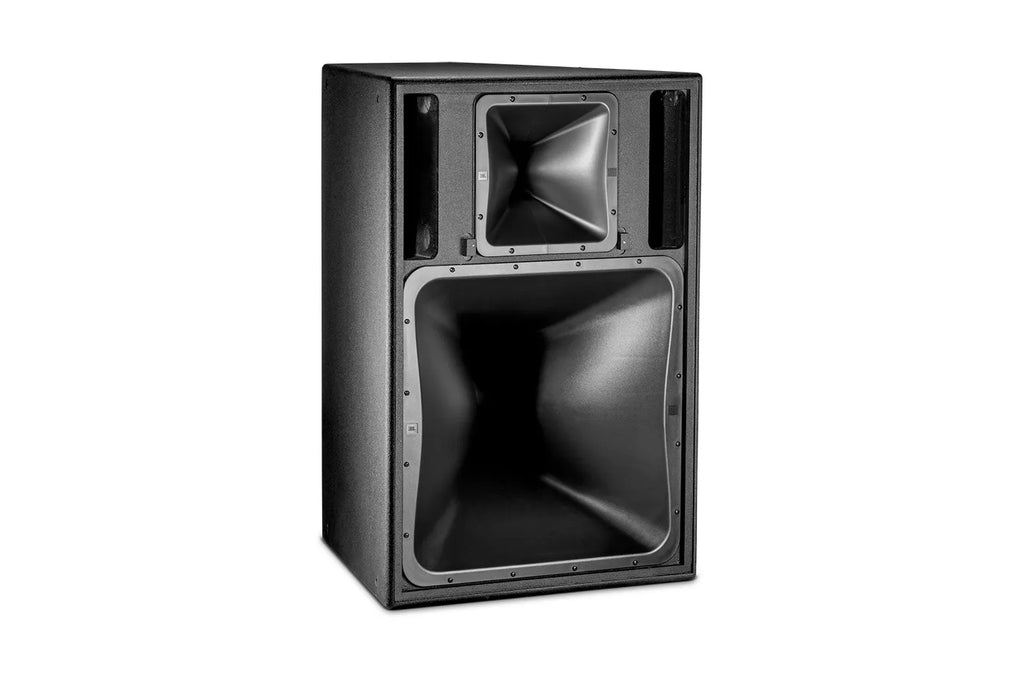

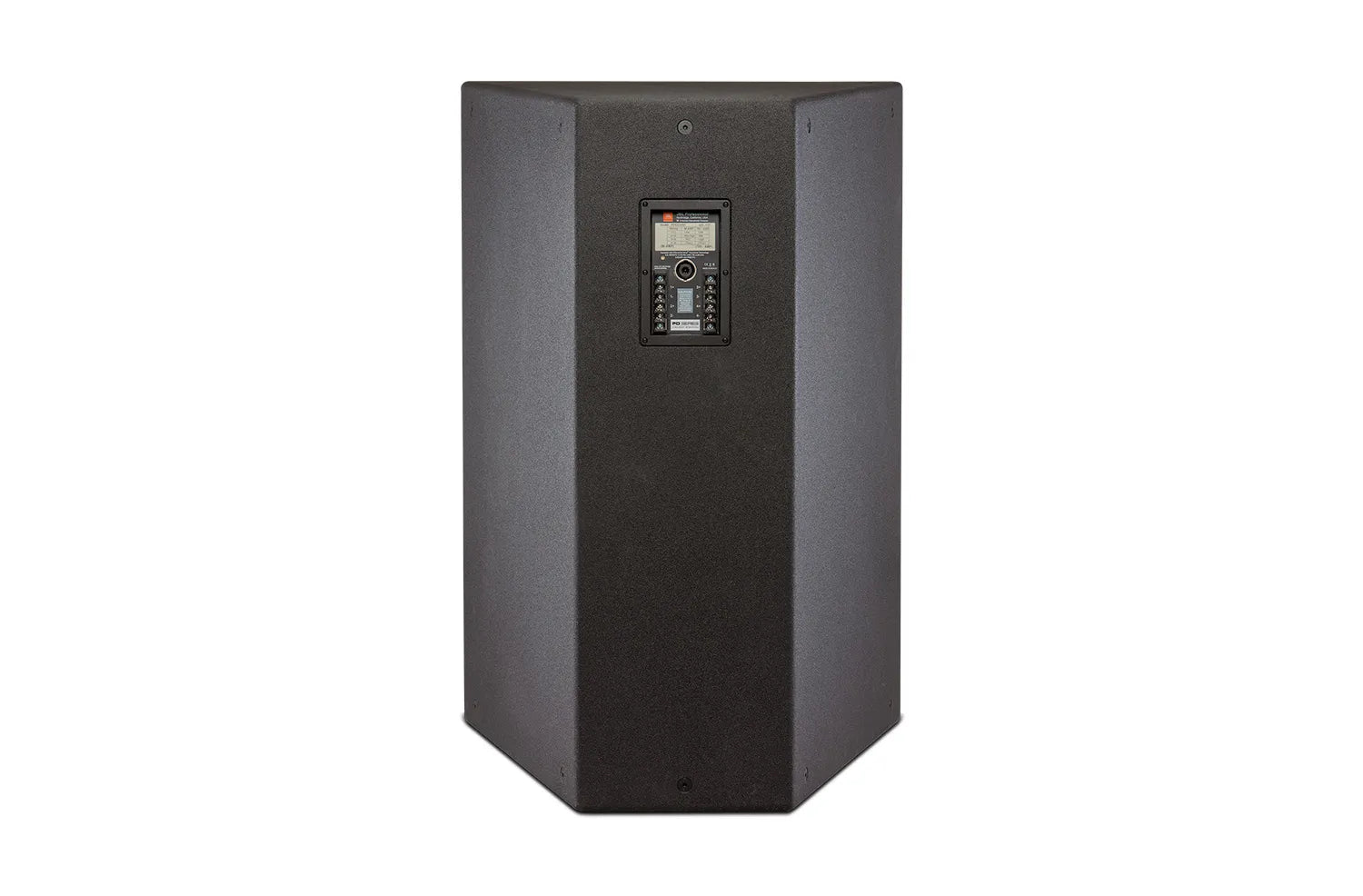

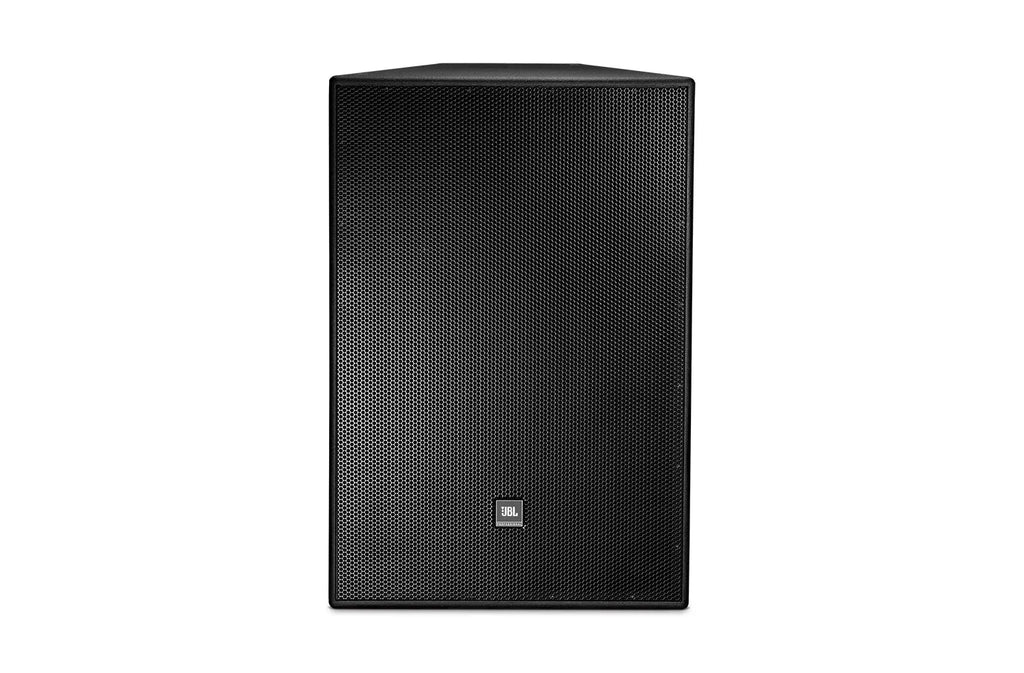

JBL PD6322/43 Dual 12" three-way full-range loudspeaker

The PD6322/43 is a high-performance full-range loudspeaker designed for applications requiring exceptional sound quality and coverage. Here are its key features and specifications:

Features:

• Two 12" woofers: Delivers powerful and accurate bass response.
• High-frequency compression driver: Provides clear and detailed mid and high frequencies.
• Large PT™ waveguides: Ensures consistent coverage and dispersion.
• Switchable crossover modes: Allows for flexibility in system design.
• Rotatable mid and high frequency waveguides: Provides versatility in placement and coverage.
• Rugged construction: Built to withstand demanding environments.

Specifications:

• Frequency Range: 41 Hz - 17 kHz
• Coverage Pattern: /43: 40° x 30°/64: 60° x 40°/66: 60° x 60°/95: 90° x 50°
• Power Handling: LF: 1600 W (6400 W peak), MF: 350 W (1400 W peak), HF: 75 W (300 W peak)
• Sensitivity: Passive Mode: 111 dB-SPL (mid/high section only)
• Dimensions: 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
• Weight: 87.3 kg (192 lb)

Ideal Applications:

• Live sound reinforcement
• Concert venues
• Theaters
• Auditoriums
• Houses of worship
• Corporate events
