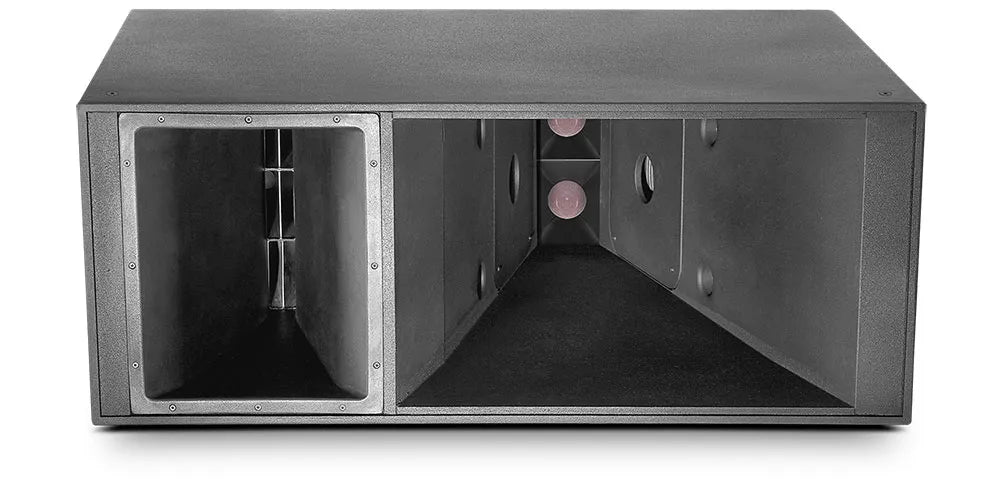

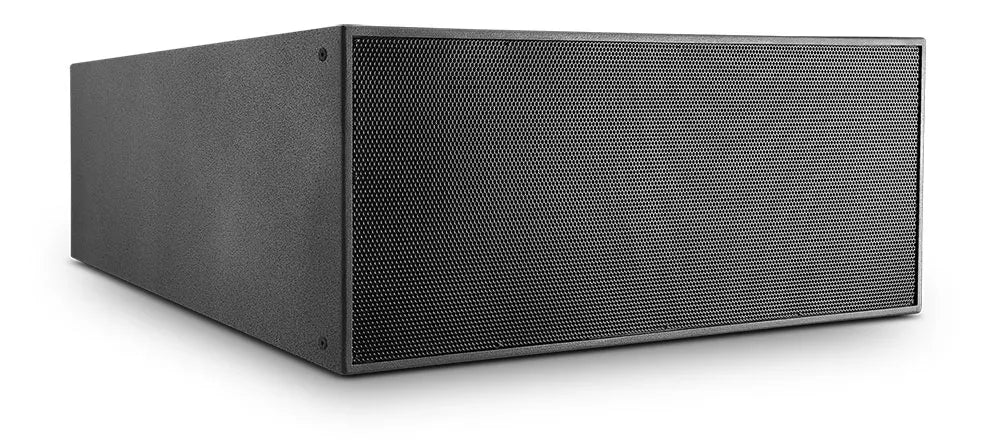

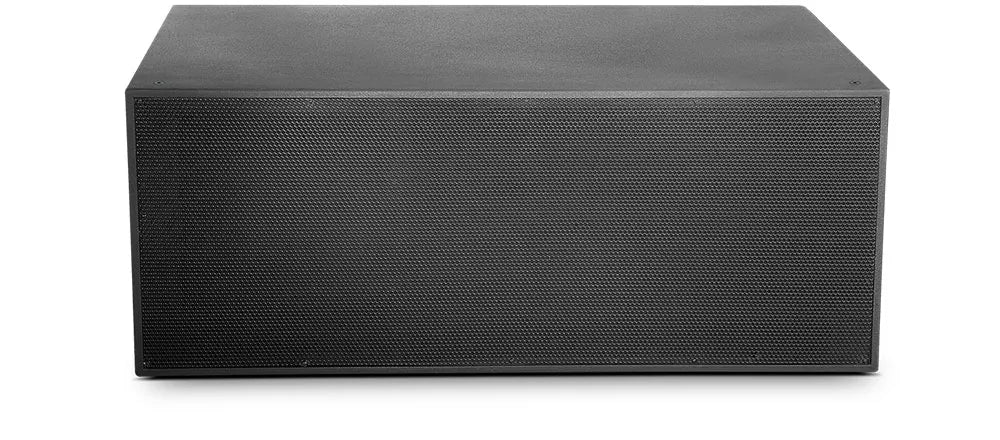

JBL VLA301I Three-Way Full Range Loudspeaker

The VLA Series from JBL is a powerful and versatile line array system designed for large-scale sound reinforcement applications. Here are its key features and specifications:

Features:

• Line array module: Provides consistent coverage and dispersion over long distances.
• Standard version: Features 3 HF drivers, 2 MF drivers, and 2 LF drivers.
• Advanced technology transducers: Delivers high output and low weight.
• Comprehensive rigging points: Allows for flexible array configuration.
• Rugged construction: Built to withstand demanding environments.

Specifications:

• Frequency Range: 39 Hz - 19.2 kHz
• Coverage: 30° Nominal (900 - 16kHz)
• Power Handling: LF: 1000W Continuous (IEC /100 hour), MF: 400W Continuous (IEC /100 hour), HF: 160W Continuous (IEC /100 hours)
• Maximum SPL: 147.5 dB (Preset: Flat)
• Dimensions: 528.3mm x 1346.2mm x 1379.2mm (20.8in x 53.0in x 54.3in)
• Weight: 139.3 kg (307 lb)

Ideal Applications:

• Large arenas and stadiums
• Outdoor concerts and festivals
• Theaters and auditoriums
• Houses of worship
• Corporate events
