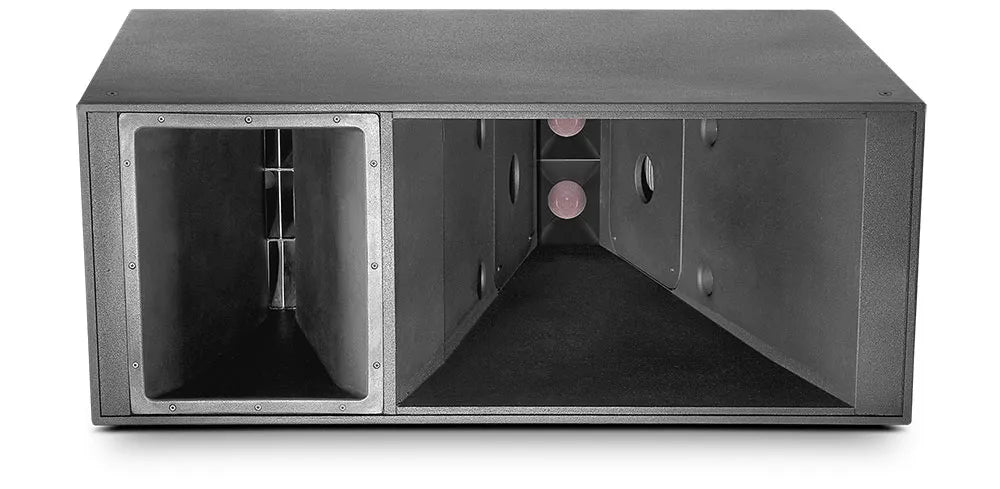

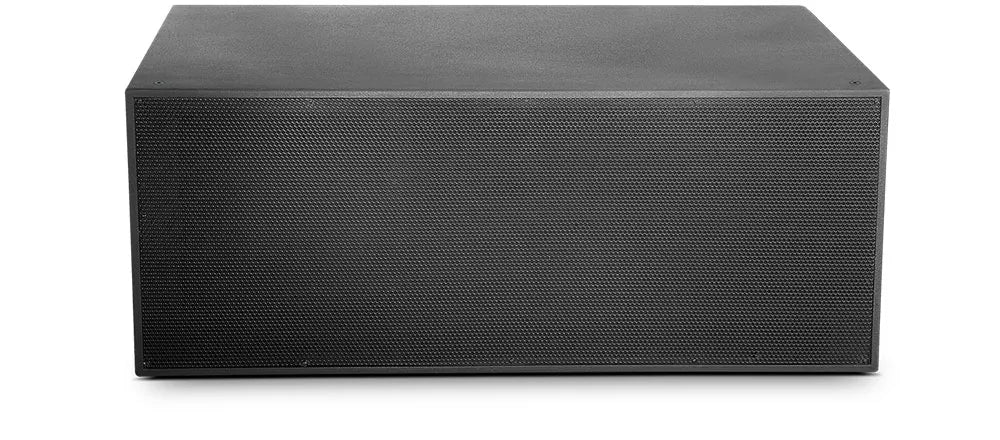

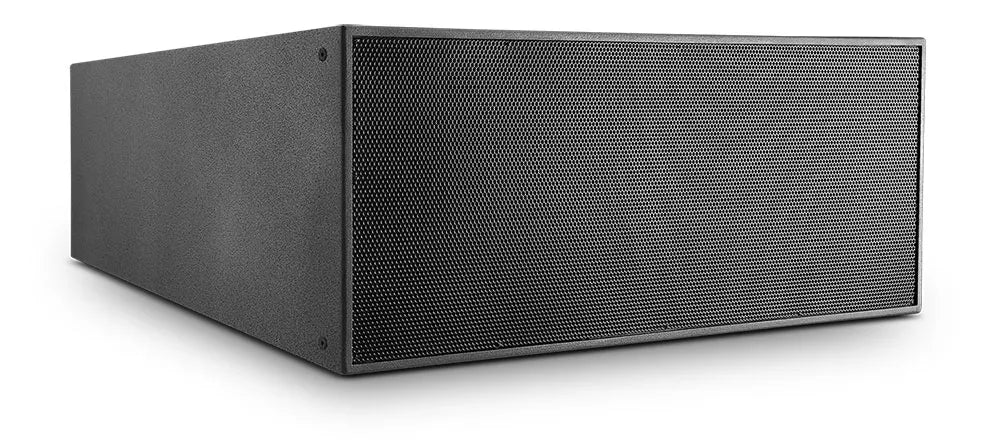

JBL VLA601HI High Output Three-Way Full Range Loudspeaker

The VLA Series from JBL is a powerful and versatile line array system designed for large-scale sound reinforcement applications. Here are its key features and specifications:

Features:

• Line array module: Provides consistent coverage and dispersion over long distances.
• High output version: Features 6 HF drivers, 4 MF drivers, and 2 LF drivers.
• Advanced technology transducers: Delivers high output and low weight.
• Comprehensive rigging points: Allows for flexible array configuration.
• Rugged construction: Built to withstand demanding environments.

Specifications:

• Frequency Range: 41 Hz - 20 kHz
• Coverage: 60° Nominal (500 Hz – 16 kHz)
• Power Handling: LF: 1000W Continuous (IEC /100 hour), MF: 550W Continuous (IEC /100 hour), HF: 300W Continuous (IEC /100 hour)
• Maximum SPL: 150.7 dB (Preset: Flat)
• Dimensions: 528.3mm x 1346.2mm x 767.1mm (20.8in x 53.0in x 30.2in)
• Weight: 115.7 kg (255.0 lbs)

Ideal Applications:

• Large arenas and stadiums
• Outdoor concerts and festivals
• Theaters and auditoriums
• Houses of worship
• Corporate events
