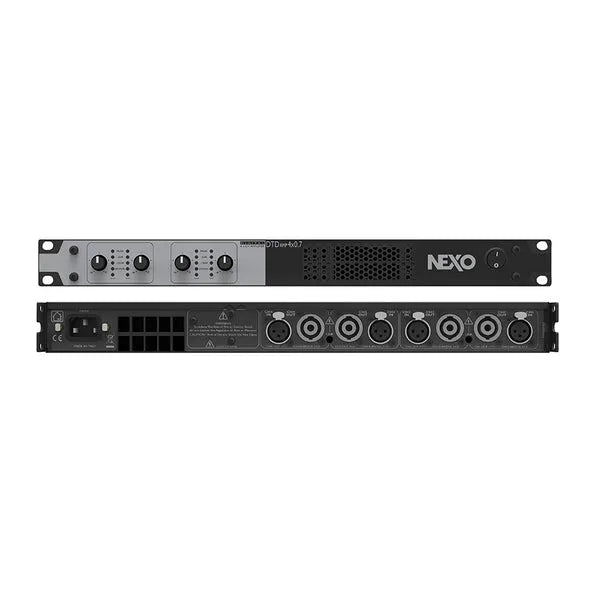

Nexo DTDAMP4X0.7 Amp, Power Amplifier 700W x 4

The DTDAMP is a high-performance, lightweight four-channel amplifier designed to deliver exceptional power and efficiency. It is ideally suited for use with NEXO speakers, providing a seamless and powerful audio solution.

Benefits

• Compact and Lightweight: The DTDAMP's 1U rack-mount design and weight of only 7.5 kg make it easy to transport and integrate into various audio systems.
• High Efficiency: The amplifier's efficient design ensures optimal power output while minimizing heat generation.
• Versatile Configuration: The DTDAMP can be used in various configurations, including bridged mode for increased power output.
• Comprehensive Protection: Equipped with multiple protection features, including overvoltage, short circuit, and thermal protection, to ensure reliable operation.
• Easy Integration: When used with the DTD Controller, the DTDAMP provides a seamless and intuitive user experience.

Features

• Two models of high-power, lightweight four-channel amplifiers
• Perfect match for NEXO speakers supported by the DTD Controller
• High-efficiency Switch Mode power supply and Amplifier channel design
• Channels can be independently bridged two by two
• Four Inputs on XLR connectors and four Outputs on SP-4 connectors
• Extensive protection (Mains over/ undervoltage, temperature, DC outputs, current and voltage peak limiters, variable speed cooling system)

Specifications

• Number of channels: 4 x amplifiers channel, 2 by 2 bridgeable
• Max. output voltage (no Load): 4 x 85 Volts
• Max. output power:
  • 4 x 8 Ohms: 4 x 360 Watts
  • 4 x 4 Ohms: 4 x 700 Watts
  • 2 bridge x 8 Ohms: 2 x 1400 watts
• Frequency response: +/- 0.5 dB from 20 Hz to 20 kHz
• Input impedance: 10 kOhms
• Input sensitivity: +5 dBU
• Nominal Gain: 32 dB
• Dynamic Range (A-weighted): > 110 dB
• THD+N: Typical 0.01%
• Analog audio inputs: 4 x balanced analog inputs on XLR
• Power outputs: 4 x SP4 outputs
• Link switch: To use same XLR input for 2 x adjacent channels
• Mains sockets: IEC C14 Inlet with secure lock
• Switch and knobs: Mains On/Off switch and volume control knob per channel
• View meters: x LEDs (signal / -18 dB / -6 dB / Peak) per channel
• Amplifier status: Amp Ready and Temperature indicator per channels pairs
• Mains voltage: Factory set for 120 volts of 230 volts mains operation
• Power consumption:
  • Idle: 65 Watts
  • 1/8 max. / 4 Ohms: 580 Watts
  • 1/4 max. / 4 Ohms: 1100 Watts
• Dimensions: 480 (W) x 44 (H) x 370 (D) mm, 19 inches / 1U
• Weight: 7.5 kg
• Operating temperature range: 0°C - 45 °C
