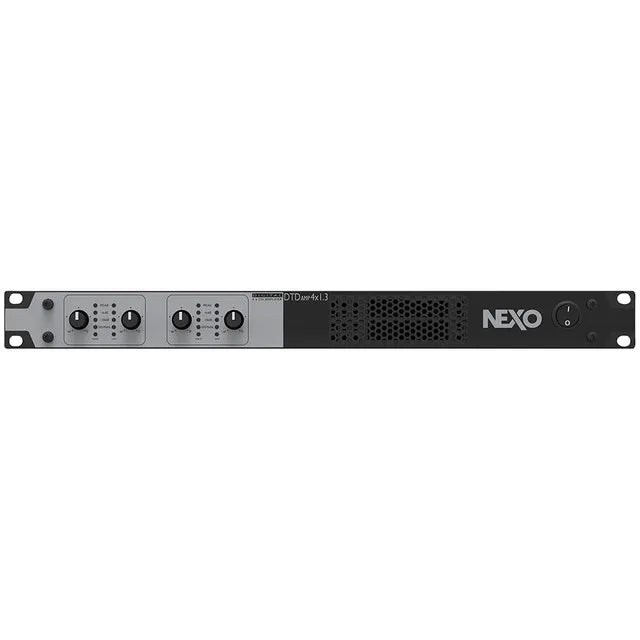

Nexo DTDAMP4X1.3 Amp, Power Amplifier 1300W x 4

The DTDAMP is a powerful and efficient amplifier designed to deliver exceptional performance and reliability. It is specifically designed to work seamlessly with NEXO speakers, providing a complete and versatile audio solution.

Key Features:

• Two models: Available in two models to suit different needs.
• Lightweight and compact: Weighs only 7.5 kg and fits into a 1U rack space.
• High-efficiency design: Ensures optimal power output while minimizing heat generation.
• Versatile configuration: Channels can be independently bridged for increased power.
• Comprehensive protection: Includes overvoltage, short circuit, and thermal protection.
• Easy integration: Works seamlessly with NEXO speakers and the DTD Controller.

Specifications:

• Number of channels: 4 x amplifiers channel, 2 by 2 bridgeable
• Max. output voltage: 4 x 135 Volts
• Max. output power: 4 x 750 Watts (4 x 8 Ohms), 4 x 1300 Watts (4 x 4 Ohms), 2 x 2600 Watts (2 bridge x 8 Ohms)
• Frequency response: +/- 0.5 dB from 20 Hz to 20 kHz

• Input impedance: 10 kOhms

• Input sensitivity: +8 dBU

• Nominal Gain: 32 dB

• Dynamic Range: > 110 dB
• THD+N: Typical 0.01%
• Analog audio inputs: 4 x balanced analog inputs on XLR
• Power outputs: 4 x SP4 outputs
• Mains voltage: Factory set for 120 volts or 230 volts mains operation
• Dimensions: 480 (W) x 44 (H) x 370 (D) mm, 19 inches / 1U
• Weight: 7.5 kg

Ideal Applications:

• Live sound reinforcement
• Concert venues
• Theaters
• Auditoriums
• Houses of worship
• Corporate events
